01-0772010-72 Whelen OR36S1W Aviation Red/White, Upper

Manufacturer: Whelen Aerospace Technologies

Part Number: 01-0772010-72

$680.00

Condition *

Availability: Out of stock

Qty:

+ -

Alternate Products:

Price Valid Until Stock is Depleted

Overview

ORION 360 Beacons are the 4th Generation LED beacons for fixed-wing aircraft. These are designed to replace legacy 2.6" and 3.75" round beacons. ORION 360 beacons are lower profile than legacy product by 60%. Please see documents for more information on this product. Available in 14 VDC and 28 VDC. Red, Red / White Split, and White assemblies available.

Model	Part #	Description	Approvals
OR36R1N	01-0772010-50	Red LED Beacon 14 VDC, 2.6" Base	FAA TSO-C96a Class III/ STC
OR36R1W	01-0772010-52	Red LED Beacon 14 VDC, 3.75" Base	FAA TSO-C96a Class III/ STC
OR36R2N	01-0772010-10	Red LED Beacon 28 VDC, 2.6" Base	FAA TSO-C96a Class III/ STC
OR36R2W	01-0772010-12	Red LED Beacon 28 VDC, 3.75" Base	FAA TSO-C96a Class III/ STC
OR36R2WL	01-0772010-13	Red LED Beacon 28 VDC, 3.75" Base Lower Mount	FAA TSO-C96a Class III/ STC
OR36S1N	01-0772010-70	Red / White Split LED Beacon 14 VDC, 2.6" Base	FAA TSO-C96a Class III/ STC
OR36S1W	01-0772010-72	Red / White Split LED Beacon 14 VDC, 3.75" Base	FAA TSO-C96a Class III/ STC
OR36S2N	01-0772010-30	Red / White Split LED Beacon 28 VDC, 2.6" Base	FAA TSO-C96a Class III/ STC
OR36S2W	01-0772010-32	Red / White Split LED Beacon 28 VDC, 3.75" Base	FAA TSO-C96a Class III/ STC
OR36S2WL	01-0772010-33	Red / White Split LED Beacon 28 VDC, 3.75" Base Lower Mount	FAA TSO-C96a Class III/ STC
OR36W2N	01-0772010-20	White LED Beacon 28 VDC, 2.6" Base	FAA TSO-C96a Class III/ STC
OR36W2W	01-0772010-22	White LED Beacon 28 VDC, 3.75" Base	FAA TSO-C96a Class III/ STC
OR36W2WL	01-0772010-23	White LED Beacon 28 VDC, 3.75" Base Lower Mount	FAA TSO-C96a Class III/ STC

Customers who bought this item also bought

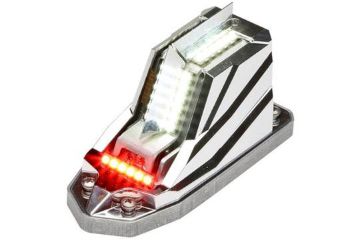

01-0790701-02 Whelen OR6501RE Red POS Light/ACL Wingtip Assembly 14 V
